BAODE F-BL SERIES BPHE
Brazed plate heat exchanger for extreme high-pressure
BAODE F-BL SERIES BPHE is specifically designed to work in air conditioning and other refrigeration applications, where the pressure requirements are extremely high.
Because of their high-pressure performance, they are particularly well-suited to CO2 applications, such as transcortical gas cooling.
•Tolerates extremely high operating pressures
•Easy to install
•Low level of service and maintenance is required
•All units are pressure and leak tested
The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life.

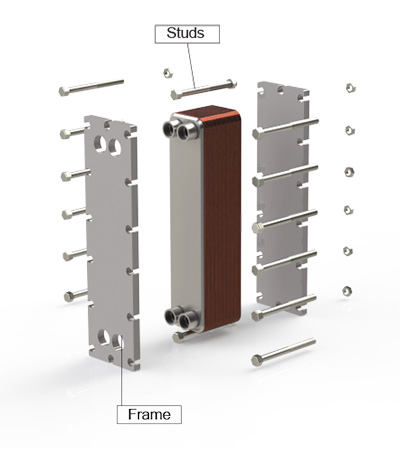

F-BL SERIES BPHE are brazed plate heat exchangers with thin external frames in carbon steel that are able to withstand extremely high operating pressures.
The unit can be supplied with a refrigerant distribution system
.Always delivered with lifting lugs for easy handling.
